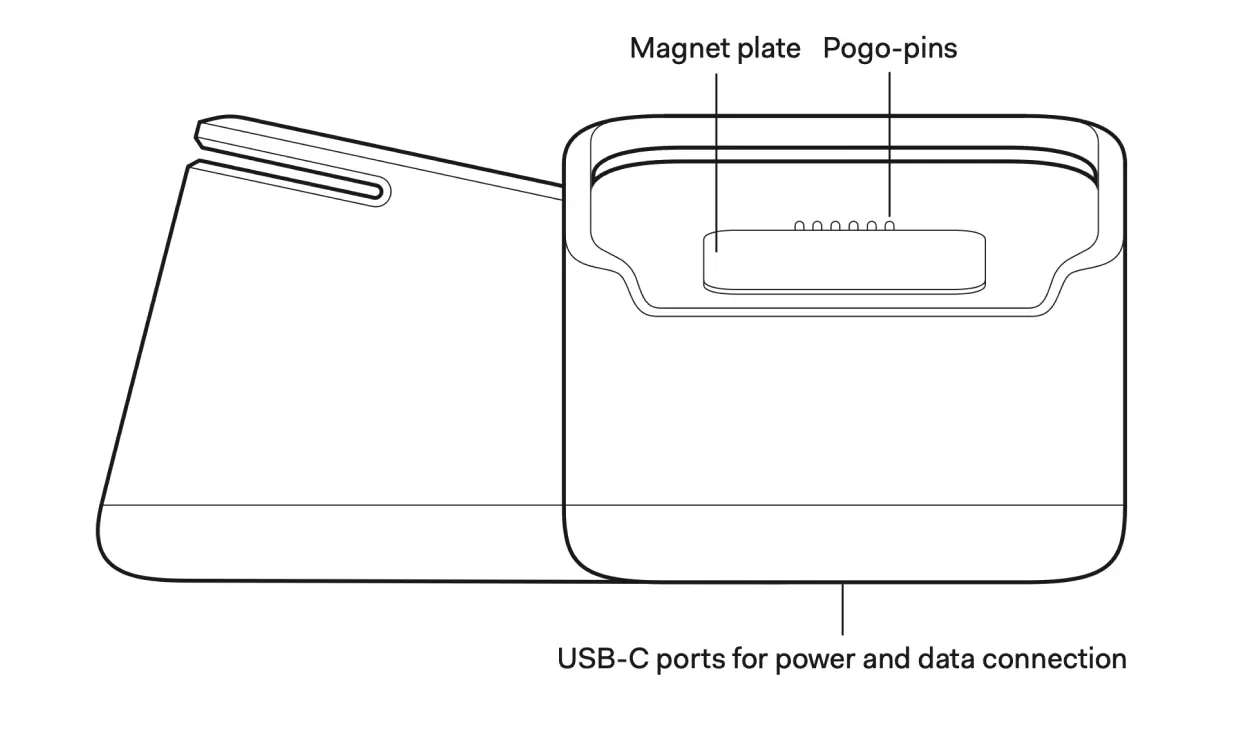

NYC 1 Dock

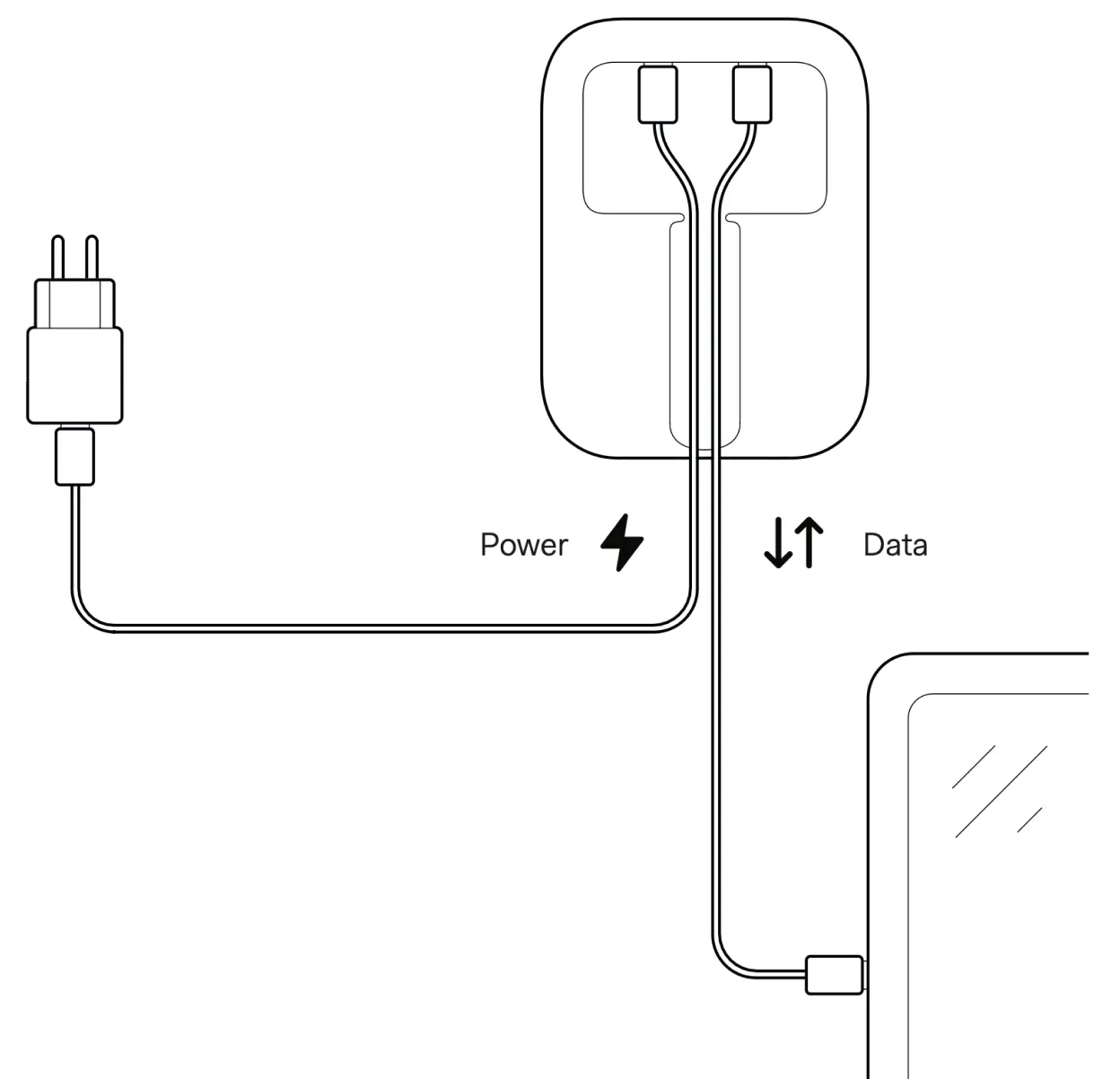

Connect the USB-C cable to the power port on the dock and plug it into a power socket using the power adapter.

Next, connect your mobile device via cable using the data port on the dock or via Bluetooth. If you connect via cable, the dock will also charge your device.

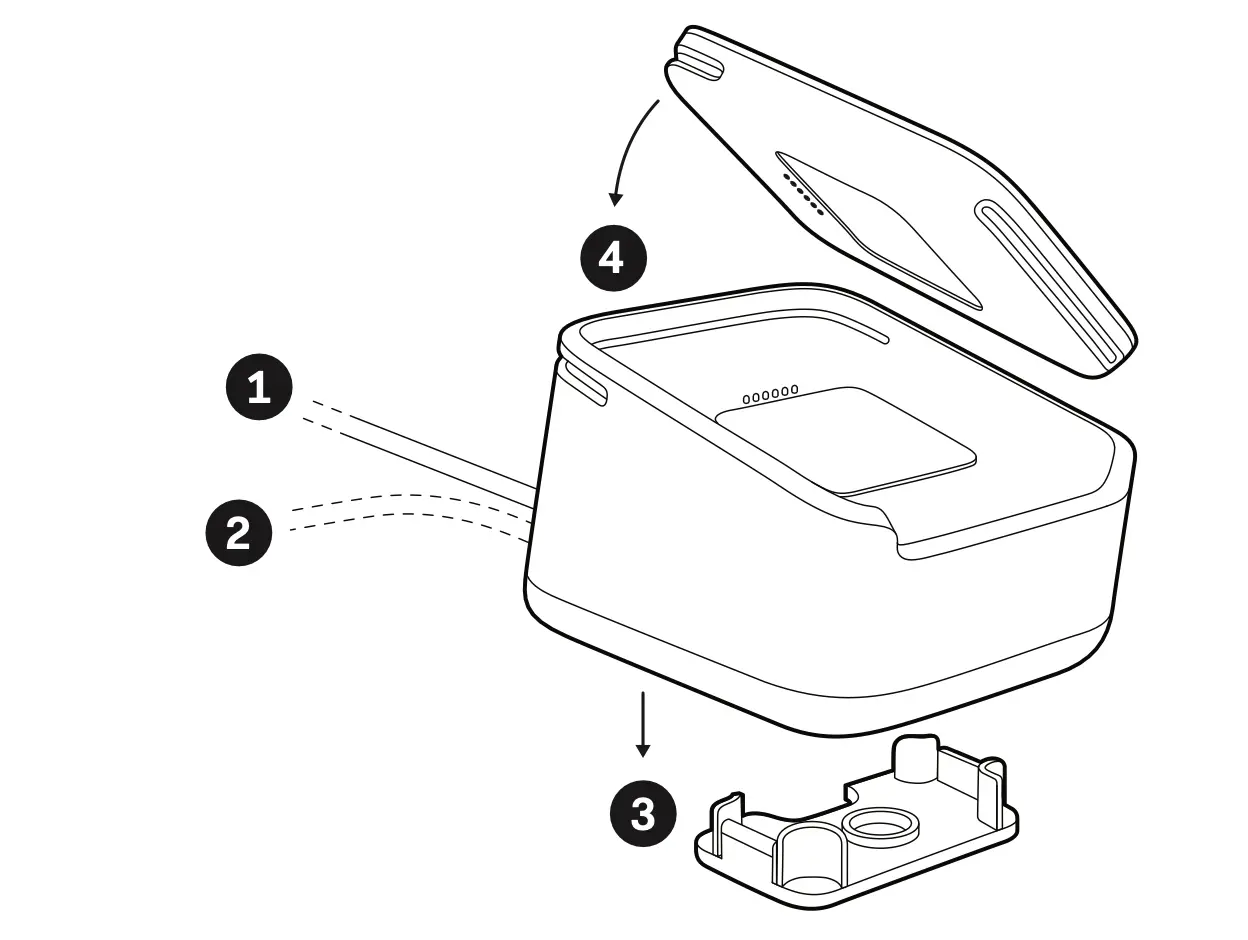

1. Check if all the cables are connected, as described on the previous page.

2. Fasten the snap plate in the desired position using the included adhesive strip or screw.

3. Place the dock on top of the plate and push down gently until the dock snaps into place.

4. Place the card reader in the dock.

This device is approved under Adyen N.V. These instructions apply to the following product: NYC1 Dock

• Recommended ambient operating temperature range: -10°C ~ +45°C (14°F ~ 113°F)

• Use only approved power supplies and power cables.

• Do not leave or store the device in areas that might get very hot.

• Do not open the device. Only qualifi ed personnel can open the device for repairs. Contact your provider if you think the device needs to be repaired.

• Keep the device out of reach of small children.

• Keep the device dry. Precipitation, humidity and liquid contain minerals that will corrode electronic circuits.

USA regulatory compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

UK regulatory compliance

Adyen N.V. hereby declares that this payment terminal is compliant with Radio Equipment Regulations 2017 and Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The declaration of conformity can be accessed at:

https://www.adyen.com/licenses/nyc1-uk-declaration-of-conformity-dock

UK representative: Adyen UK Limited, with address 12-13 Wells Mews, London, England, W1T 3HE

EU regulatory compliance

Adyen N.V. hereby declares that this payment terminal is compliant with Directive 2014/53/EU and 2011/65/EU. The declaration of conformity can be accessed at:

https://www.adyen.com/licenses/nyc1-eu-declaration-of-conformity-dock

EU representative: Adyen N.V. with address Simon Carmiggeltstraat 6-50, Amsterdam, Netherlands

Disposal and recycling information

The symbol means that according to local laws and regulations your product shall be disposed of separately from household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Canada regulatory compliance

English: The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B).

French: L’appareil numérique est conforme à CAN CAN ICES-3 (B) / NMB-3 (B).
