LLM inference at scale with TGI

Prefill

During the Prefill stage, the input prompt is tokenized on the CPU and then transferred to the GPU. Tokenization is the process of converting the words into smaller units, known as tokens, which the model can process more efficiently. For example, given the prompt, "What is the capital of the US?" The model tokenizes the sentence and processes it in one forward pass through the loaded model on the GPU, generating an initial token. This initial pass is relatively quick as it only requires a single pass through the model to produce the first token, such as "Washington" in response to the prompt.

Decode

The Decode stage is where the autoregressive nature of LLMs comes into play. In this stage, the model generates text one token at a time, building upon the initial token from the Prefill stage. Each newly generated token is appended to the input sequence, creating a new context for the model to process. For example, as shown in Figure 1, after generating "Washington" as the initial token, the new sequence becomes, "What is the capital of the US? Washington". This updated sequence is then used to generate the next token. The model continues this process iteratively, with each new token influencing the generation of the next. This autoregressive approach allows the model to maintain context and generate coherent responses. The Decode stage continues until an end-of-sequence (EOS) token is generated, or the maximum sequence length, specified by max_new_tokens, is reached. At this point, the generated sequence is de-tokenized on the CPU, converting the tokens back into readable text.

Figure 1: Prefill and Decode flow [1]

Why Separate Prefill and Decode?

The separation of the Prefill and Decode stages is essential due to the distinct computational characteristics of each stage. While the Prefill stage requires only a single forward pass, the Decode stage involves multiple passes, each dependent on the previously generated tokens. This autoregressive nature of the Decode stage contributes to longer processing times, and the computational expense scales quadratically with the total sequence length.

To optimize this process and mitigate quadratic scaling, a technique called KV caching [6] is employed. KV caching saves intermediate states, known as KV caches, generated at each token position during both the Prefill and Decode stages. By storing these KV caches in GPU memory, the model avoids the need to recompute them, reducing computational overhead. This optimization is particularly beneficial for the Decode stage, improving its efficiency and helping to manage the longer processing times associated with autoregressive token generation.

TGI integrates numerous state-of-the-art techniques to provide smooth, low-latency, and high-throughput inference, making it an ideal choice for production environments where performance and scalability are critical. It offers a simple yet versatile launcher to serve various LLMs, along with distributed tracing via Open Telemetry and Prometheus metrics for comprehensive monitoring. TGI supports advanced attention mechanisms like Flash Attention and Paged Attention, ensuring optimized and efficient inference. The framework also provides fine-grained control through various arguments and per-request configurations, such as guided decoding for structured output generation.

When serving LLM-based applications, model serving can be divided into two main components: the engine and the server (as illustrated in Figure 2). The engine handles everything related to the models and batching requests, while the server focuses on forwarding user requests. In TGI, these components are named accordingly: the server is referred to as the router, and the engine is called the text_generation_server.

Figure 2: Architecture of an LLM backend [2]

The Router: Queueing and Continuous Batching

The primary purpose of TGI router is to manage incoming requests and prevent the engine from encountering memory-related issues and ensuring smooth and efficient LLM inference. It employs a smart continuous batching algorithm, dynamically adding requests to the running batch to optimize performance. This dynamic batching approach strikes a balance between latency and throughput.

Upon initialization, the router triggers a warm-up phase on the inference engine. We’ll cover that on the next section, but basically during this phase, the router determines the maximum capacity of the underlying hardware (GPU) for the deployed LLM:

• MAX_BATCH_PREFILL_TOKENS: The maximum number of tokens the GPU can handle in a single forward pass during the prefill stage.

• MAX_BATCH_TOTAL_TOKENS: The maximum tokens that can be processed concurrently during both prefill and decode steps.

The router's continuous batching algorithm is designed to prevent Out Of Memory (OOM) errors. Unlike static batching, where requests wait for the previous batch to complete, continuous batching allows for the dynamic addition of new requests to the running batch. That means that “With continuous batching you can find a sweet spot. In general latency is the most critical parameter users care about. But a 2x latency slowdown for 10x more users on the same hardware is an acceptable trade off” [3]

The logic behind the router's dynamic batching is illustrated in the provided pseudocode:

To better illustrate how TGI's continuous batching algorithm works, let's walk through a specific example with the following initial setup seen in Table 1. Initially, no requests are being processed so the total token budget is equal to MBT.

Table 1: Environment setup for continuous batching example.

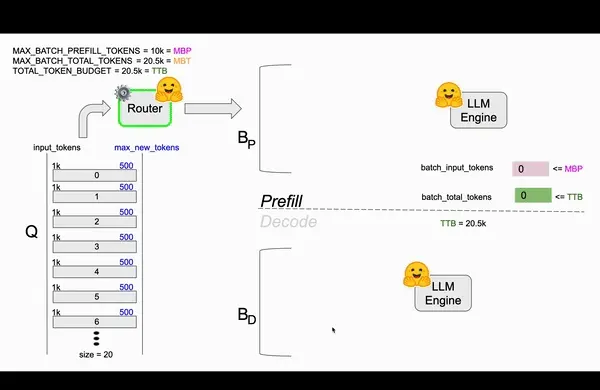

In figure 3, the first 10 requests smoothly go through the prefill and decode steps, and the TTB is updated accordingly. After this, there are 10 requests in the queue and 10 requests currently decoding, each holding some budget from TTB until they reach their max_new_tokens or generate an EOS token.

Figure 3: TGI Continuous Batching animation based on TGI router code.

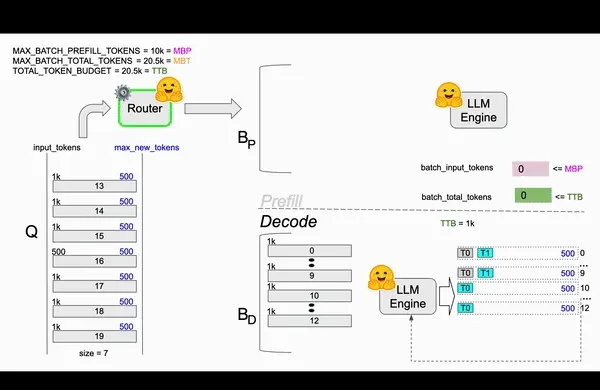

We encounter a scenario where requests 13th, 14th, and 15th would exceed the available token budget, preventing them from undergoing the prefill step. As you can see in figure 4, the 16th request, with a smaller token count, fits within the TTB and successfully prefills the cache, joining the running decoding batch. At this point, the token budget is fully utilized, and we must wait for currently running requests to complete.

Figure 4: TGI Continuous Batching animation based on TGI router code.

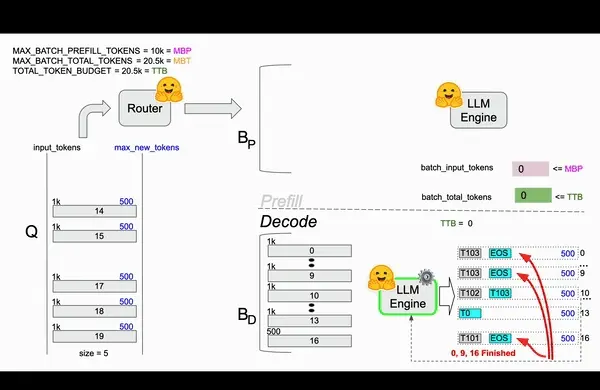

Eventually, in figure 5, requests 0th, 9th, and 16th finish processing, freeing up token budget space. This allows requests 14th and 15th to proceed with prefill and decoding, leaving a TTB of 1,000 tokens. As the process continues, more requests complete, freeing up the budget for the remaining requests in the queue (17th, 18th, and 19th) to be processed.

Figure 5: TGI Continuous Batching animation based on TGI router code.

One important observation is worth noting from Figure 3. The first 10 requests (0th to 9th) underwent the prefill step together, yet they did not saturate the available TTB of 20.5k tokens. This raises the question: why weren't more requests added to the batch? The answer lies in the token budget for a single forward pass, or MBP. Those 10 requests saturated the MBP, which is specific to the prefill stage. In later steps, the router adds requests to fill the memory for the decoding step, but these requests couldn't be included earlier as they would have exceeded the MBP budget. This scenario highlights the difference between MBP and MBT: while MBP focuses on the prefill stage, MBT represents the total token budget, with decoding benefiting from memory optimizations. The distinction between MBP and MBT can be further explained by considering the nature of the prefill and decode stages. In the prefill step, the LLM engine processes sum( req.input_tokens for req in requests). For instance, with 4 requests, each with 500 input_tokens and 500 max_new_tokens, the batch of 4 results in 2000 tokens processed in the prefill stage and another 2000 tokens to decode. This seems confusing as both stages handle the same token load. However, the impact on memory differs due to the KV Cache mechanism.

During prefill, the engine performs a full forward pass across all 2000 tokens to obtain the attention queries, keys, and values for each input token, leading to the output of the first decoded token for each sequence. In contrast, during decoding, the Nth token benefits from the KV Cache, where all previous tokens' attention keys, queries, and values are already cached. Thus, decoding is like running a forward pass on just one token, the Nth token. As decoding is autoregressive, it proceeds token by token, making the generation of 2000 tokens for 4 sequences akin to processing only 4 tokens concurrently. In comparison, prefill requires forwarding all 2000 tokens through the model for the first new token generation.

TGI offers configurable parameters to fine-tune the behavior of the prefill and decode stages for specific use cases. These parameters, set as environment variables (WAITING_SERVED_RATIO, MAX_WAITING_TOKENS, and MAX_BATCH_SIZE), allow for customization of the trade-offs between the two stages.

The implementation of continuous batching at the server level, using Rust, is a strategic choice by TGI developers. Rust’s speed is your best ally in this case since Python would be adding some milliseconds per decision. More precisely, strict typing and real concurrency are what give Rust a huge boost over Python. When thinking of scale, this decision can happen 100x times for a single batch of requests which would add 100s of ms to the end to end latency.

The Inference Engine: Warmup and inference optimizations

The inference engine is the one in charge of processing the requests coming from the router. Essentially, it loads the model into the GPU’s memory and then, runs the prefill and decode stages. We will cover what we consider are the most important features of TGI’s inference engine: warmup, kv caching, flash and paged attention.

Warmup

This phase is run before starting to process any requests. First, it estimates the appropriate token budget based on the available hardware and the deployed model so that no OOM errors occur during inference. Also, if enabled, it records CUDA GRAPHS for LLM forward passes on a set of batch sizes: on a high level this is an efficient way of recording GPU operations for fixed size inputs, i.e batch sizes, reducing the overhead of CPU-GPU communication when replayed [4]. In order to estimate the prefill token budget, the engine adds requests of input_tokens = max_input_tokens and max_new_tokens = max_total_tokens - max_input_tokens to a batch until it saturates the MAX_BATCH_PREFILL_TOKENS. Then, this batch is forwarded through a prefill and if there is an OOM error, TGI will force you to decrease MAX_BATCH_PREFILL_TOKENS. When this is done successfully, TGI goes on to estimating the total token budget.

For the total token budget estimation, the engine maps available memory to a total count of processable tokens. First the engine calculates 95% of the available VRAM, leaving 5% room for error, where Available VRAM = GPU VRAM - Model VRAM - Prefill KV Cache VRAM. The available memory is then divided by the memory required to process a block of tokens [5] yielding the total number of tokens that can be processed simultaneously. This value is set as the MAX_BATCH_TOTAL_TOKENS, essentially the tokens that in a block times the number of blocks that fit into memory. Inference Optimizations

Additionally, in the case of TGI, this engine already comes with the common state-of-the-art algorithms for optimized LLM inference such as: Paged Attention [5],and Flash Attention [7].

PagedAttention addresses the memory-bound nature of LLMs by optimizing how memory is managed during inference. In a GPU, every memory movement impacts latency and throughput, and recreating KV-cache tensors for each request would be inefficient. PagedAttention splits the KV-cache into N pages, allowing each request to use n pages that are released upon completion. This paging system eliminates the need to re-allocate tensors, instead reusing pages for new requests, which reduces unnecessary memory movements. Although this may hurt cache locality in the kernels, the reduction in memory re-allocation makes the trade-off worthwhile [5].

FlashAttention is a valuable, though not critical, optimization at LLM inference time. Its primary impact lies in enabling the use of padless tensors. Previously, attention computation required tensors of shape [batch_size, seq_len, ...], which required padding the shorter sequences to match the longest one, leading to increased memory movement and VRAM usage due to these added pad tokens. FlashAttention eliminates this need, significantly reducing VRAM consumption. While the SRAM benefits highlighted in the FlashAttention paper are most advantageous during training, which is compute-bound, the reduced VRAM usage and enhanced efficiency still provide considerable performance boosts during inference, especially with long sequences [7].

Latency and throughput drivers

Remember! LLM inference involves two key stages: Prefill and Decode. The prefill speed impacts the Time To First Token (TTFT), as token generation cannot begin until the input context has been processed. Then, the decoding speed influences the Time Per Output Token (TPOT), which measures the rate at which tokens are generated after the prefill. Both TTFT and TPOT are critical for user experience and play a vital role in defining LLM inference performance. Additionally, inference performance is also affected by throughput which is driven by memory, also known as GPU’s VRAM. Available VRAM is largely determined by size of the model and the KV-cache. VRAM usage directly impacts the maximum batch size and sequence length. In summary, LLM inference is characterized by VRAM usage, TTFT, and TPOT. To estimate these metrics, one must consider the data volume to be processed and the FLOPs (Floating Point Operations) required for computation.

GPUs: High level overview

In order to understand the following section, you need to know at least on a high level what a GPU does. Keeping it simple, it loads data (from GPU memory known as HBM/VRAM into the compute unit’s SRAM) and computes FLOPs (mathematical operations like matrix multiplications). These operations are limited by how much memory per second the HBM can “move” and by how many FLOPs per second the SM can do [11]. A very important concept to remember is compute bound versus memory bound. A job is said to be memory bound if memory can not supply work at a rate to keep the processor busy. On the contrary, a job is said to compute bound if its bottleneck by the speed of the processor.

Metrics computation

Now is where we will see the big difference between prefill and decode, and how their separation impacts performance. Prefill loads the model once from memory to process all input tokens in parallel, which leads to a compute bound process with a high number of operations per byte read. In contrast, decode is a memory bound process since it loads the model max_new_tokens times, once for every single token generated (low number of ops per byte read) [9].

Let's assume we are serving LlaMa-7b using 16-bit precision on an A100 GPU. We are going to compute the VRAM requirements and the different timings: prefill, decode, TTFT, TPOT and total time. For that we need to define a couple of constants in Table 2.

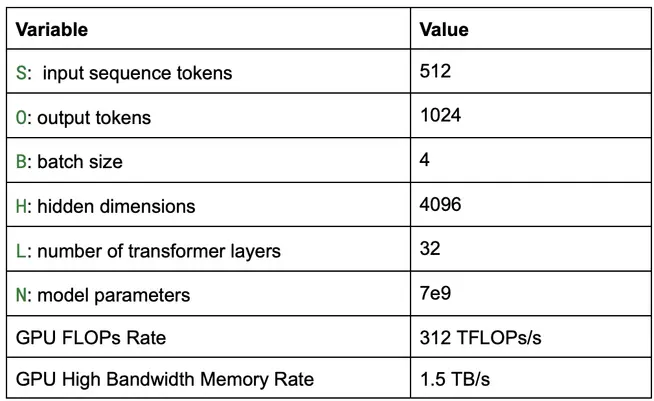

Table 2: Token load, model and hardware characteristics.

To derive the TTFT, TPOT and total times we first need to compute the prefill and decode times. Each of the prefill and decode stages have both a compute and a memory time. In terms of compute, a token’s embedding needs to be multiplied with the model's weight matrix or parameters; this accounts for N computations. So for prefill step where we process the whole input of all sequences in a batch, we have B*S tokens, therefore we perform N*B*S calculations [10]. On the other hand, for decode step we only process one token at a time for each of the sequences in the batch, which is B*1 tokens, therefore we perform N*B*1 computations. We can't forget, though, that we are using 16-bit precisions which means for each computation we are using 2 bytes. In contrast, for memory time, we need to load the N model parameters into memory, each of those stored in 2 bytes (16-bit precision). A summary of the operations is shown in Table 3.

Table 3: Math behind Compute and Memory types of Prefill and Decode stages

Now that we have these, we can compute TTFT, TPOT and total time. In Table 4, we take the maximum between compute and memory times, since they overlap among each other and the longest one is the dominant time that makes the process compute or memory bound.

Table 4: Math behind TTFT, TPOT and Total Time

We have so far made the calculations affecting latency, let’s look into the ones that impact throughput. For that we will compute how much VRAM is available for inference, the more available, the more tokens we can process in parallel. Remember that we are using 2 byte precision and A100 has 80GB VRAM. As you see in Table 5 before processing any request, the KV cache is empty so the VRAM is only holding the model_size = 2*N GBs. Once TGI prefills for a batch of requests the VRAM usage increases kv_cache_size over model_size. The KV Cache size shown in Figure 6  is explained as follows: for each token there are two vectors, one for key and one for the value, each of these vectors exist in each of the attention heads L with dimension H. Initially, after the prefill, there are B*S tokens.

Figure 6: Math behind KV Cache Size for prefill tokens  linked to transformer components. Inspired from [10]

Eventually, in Figure 7, when TGI finishes decoding kv_cache_size would have grown proportional to S+O.

Figure 7: Math behind KV Cache Size for total tokens, linked to transformer components. Inspired from [10]

Table 5: Math behind VRAM usage. As we see in Table 5, in our example, since the A100 GPU has 80GB of VRAM, we can comfortably handle such a token load. However, if we increase the token load to S=3000, O=2000 and B=32, this results in VRAM Used = 14GB+67GB = 83.8GB > 80GB. Therefore, we can not handle this token load on a single A100 GPU. We must either use a smaller model, a GPU with more VRAM, we leverage tensor parallelism across more hardware or we could quantize our model weights.

Relevant metrics per use case

Depending on the use case of your downstream application you will care about different performance metrics. For example, if you are serving a RAG application then you will probably care much about latency and less about throughput, in particular you will care about TTFT and TPOT to be faster than the end user’s read speed. Alternatively, if you have an application that summarizes every incoming ticket sent to the customer support area, then you care about the total time it takes the complete summary to be ready. In such a case, your use case is less dependent on TTFT and more on TPOT multiplied by the amount of tokens the summary needs. On the other hand, if you are processing financial documents overnight for classification then you care mostly about how many documents you can fit at once, i.e you will completely disregard latency and only care about throughput.

When estimating the latency and throughput in these applications is critical you think in tokens and not in requests. It is advisable to draw out the flow of tokens in the system as we do in Figure 8, keep it simple,  how many tokens go in the model? How many come out? It's not the same to have a simple chat than a RAG app.

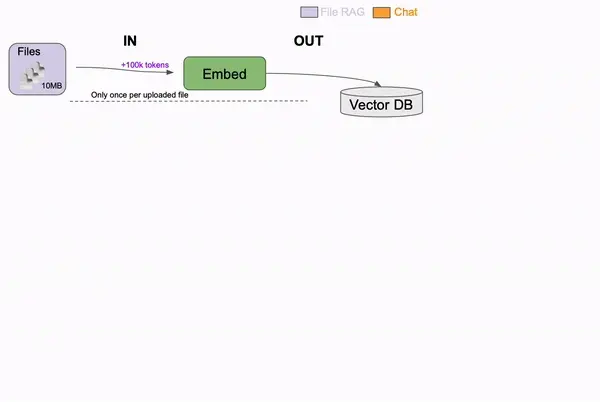

Figure 8: Comparison of token budgets of chat vs file RAG applications. For example in Figure 8, we compare the amount of tokens to be processed by a file RAG application versus just a chat application. A file RAG app also needs a chat interface to allow the user to write queries about the uploaded file, so we distinguish in purple what is explicitly needed for the RAG app and in orange what is needed for a chat app. We can see how total input tokens are 109k if we consider the initial file upload, if we don't consider, then it is just 9k tokens. However, if we only count the orange tokens, we see that a chat app only needs 5k input tokens and 1k output tokens, which is almost half of what the file RAG app needs.

• The autoregressive nature of the decode step is the key bottleneck for latency and throughput. In order to alleviate these, TGI has adopted many techniques to cut down latency and bring up throughput while decoding: Paged Attention [5], KV Caching [6] and Flash Attention [9] among others.

• TGI’s router takes advantage that generations can finish unexpectedly because of an EOS token and decode token budget is larger than prefill token budget. Therefore, instead of static batching, it continuously batches requests to the inference engine intertwining prefill-decode steps and filters away finished requests.

• The LLM and GPU chosen are the most important drivers of performance: throughput and latency. More precisely, performance is a function of the LLM parameters size, the GPU’s High Bandwidth Memory and the GPU’s FLOPs.

• It is critical to think in tokens and not requests when working with TGI. This means to understand the flow of tokens in your use case and find the relevant per-token metrics you need to optimize for.

• TGI’s benchmarking tool is great for getting familiar with main bottlenecks affecting your use case. However, it is skipping the router (not leveraging continuous batching), in order to test TGI as a whole, router and inference engine together, it’s preferable to use a load testing tool such as k6.
